140cc Manual Clutch - E-Start

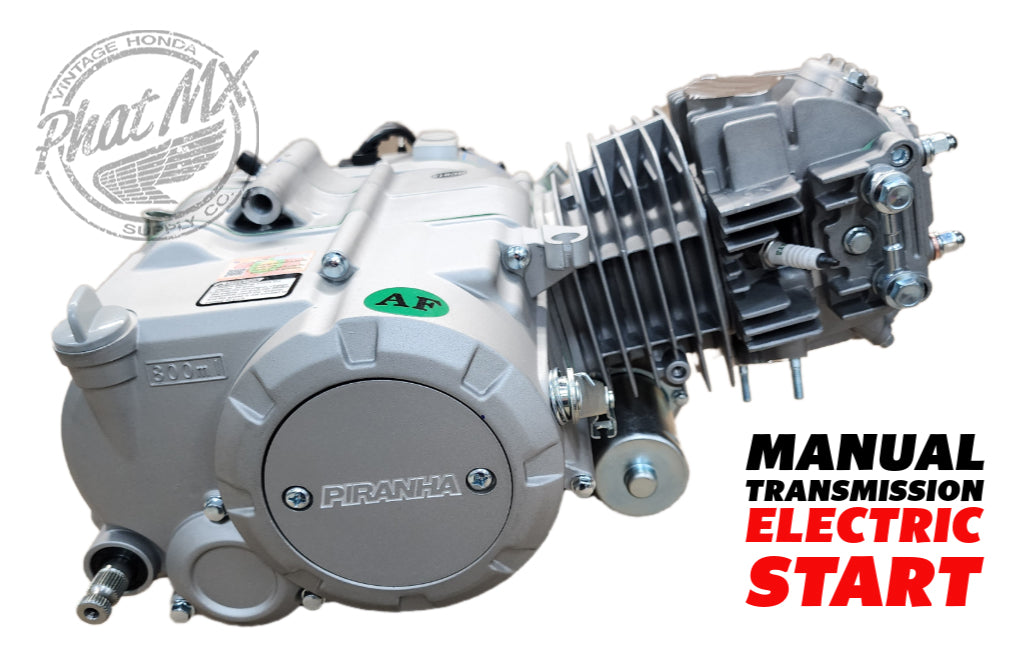

PIRANHA 140cc 'Electric Start' Engine with MANUAL TRANSMISSION

NOT included: 12V battery, Air Filter, Throttle Cable, clutch cable or lever.

Available to fit a wide array of Motorcycles and ATV’s.
Starter motor on bottom.

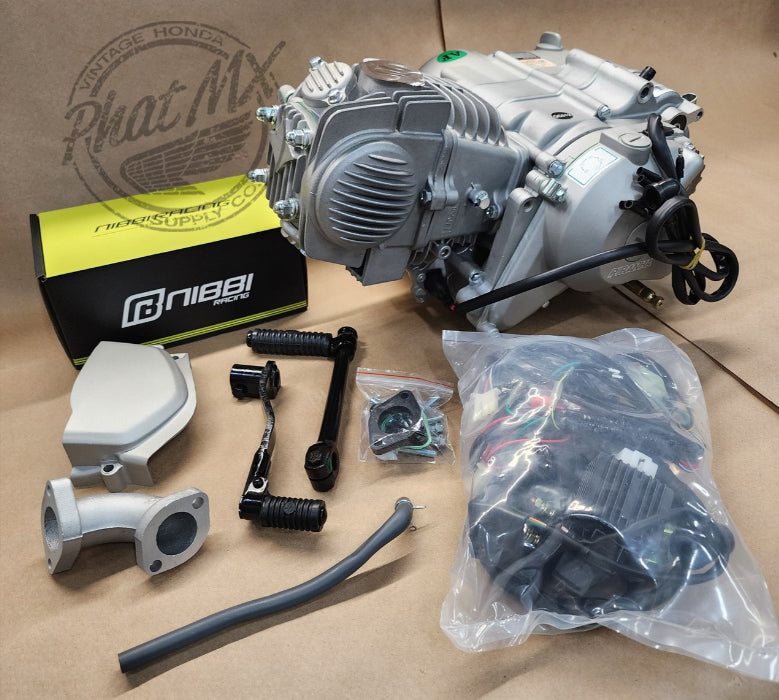

Comes complete with:

• NIBBI Carburetor
• Intake manifold
• Kick starter
• Shifter

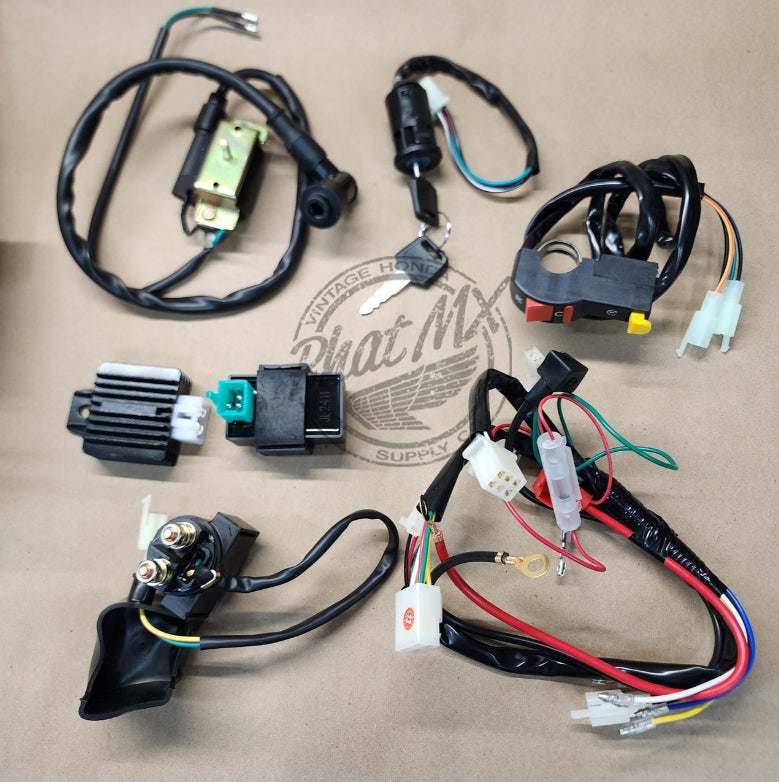

• Ignition coil
• Wire harness
• CDI
• 4 Speed, 4 up (N,1,2,3,4) gear pattern MANUAL.
• Front Drive Sprocket Included

*** Will run headlights.

Engine

Starting pit bike engines will take some practice. All pit bike engines have relatively high compression ratios and require a "quality over quantity " approach in order to ensure quick start ups and avoid mechanical mishaps. It is important follow this routine the first few times when first attempting to start your bike.

1. Slowly kick engine over until the kick start reaches a compression stroke (the point in which the kick start lever is hardest to push down.)
2. Slowly continue to press the kick starter until the engine rotates slightly through the firmest point in the compression stroke.
3. Allow the kick start lever to return back its top rest position
4. With a quick and balanced motion - Move down forcefully on the kick lever. These motors need a strong, quick kick to get started.
5. If you fail to follow this procedure, especially with longer stroke engines or 125cc + bores you can cause serious damage to your crankcase, clutch and transmissions assemblies!

Tips to Avoid kickback

1. Hold onto the crossbar pad with your throttle hand while kicking the bike over to avoid twisting the throttle open by accident
2. Before start up - turn the idle screw on the carburetor in a turn or 2 (turn the screw back out to normal idle setting once running.)
3. Use a digital CDI with variable ignition timing at start-up, this will help reduce kick back and allow the bike to start much easier compared to the stock CDI unit.
4. If ignition timing is adjustable it should be adjusted to the minimum
5. Furious, repeated kicking will not get the engine started - firm, full stroke kicks are the only way to get them to start first kick, every time "Quality over Quantity"
6. Throttle must be completely closed when you kick the engine over or it will kick back EVERY TIME.
7. A small blip of the throttle maybe used when the engine is hot if required but NO more than 10 ° opening of the throttle in any case.
