19mm Nibbi Carb

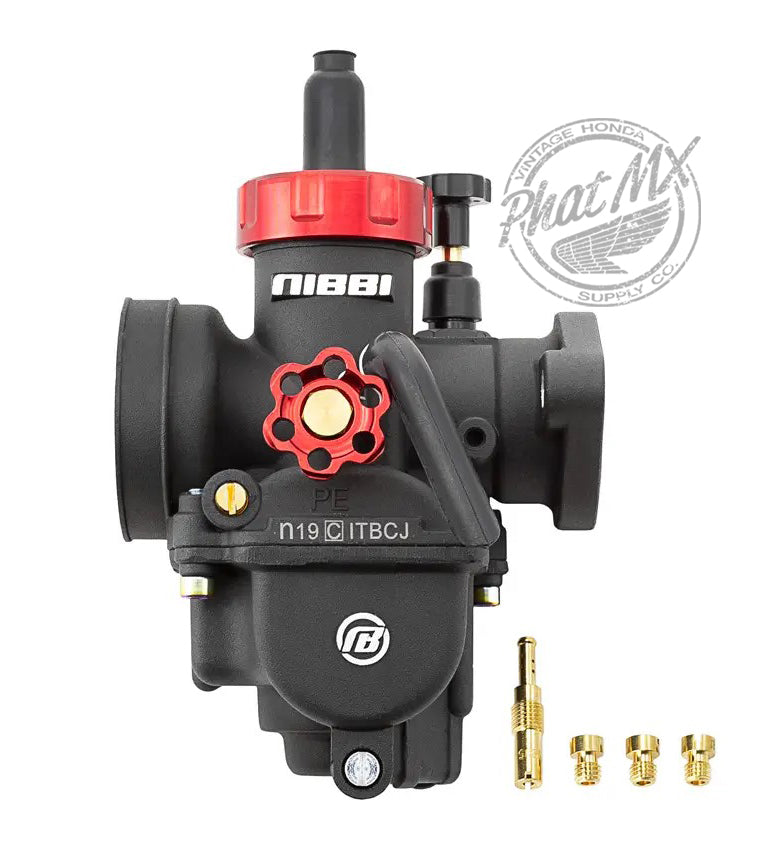

Nibbi PE19FL – 19mm Performance Carburetor

Nibbi helped perfect the simple design of the PE19! Starting with looks, they come hard anodized black. This helps with corrosion resistance, wear resistance, insulation, heat resistance and hardness/strength of the carburetor. The air passage starts out anodized then transitions into a smooth polished finished for optimal power and smooth consistent power. The lightweight hardware is also anodized. Another huge benefit is the splash guard. It keeps the engine operating smooth under bumpy riding. Making them an AMAZING value overall!

Key Features

• Polished round slide for improved throttle response, overall smoothness, and stability in use.
• Air Passage is mostly polished smooth for more power and consistency
• Lightweight anodized hardware.
• Huge splash guard for smooth operation.
• Anodized, which greatly improves the corrosion resistance, wear resistance, insulation, heat resistance and hardness or strength of the carburetor.
• Includes Main Jet #95 #92 #88 Pilot Jet #30
• AMAZING value!

Specifications

• 46mm air filter – TBparts air filter TBW1782 – Not included
• Flange: 48mm Bolt Center
• Jets installed #98/#32
• Includes Main Jet #95 #92 #100 Pilot Jet #30
• Main Jet kit – TBW0327
• Pilot jet kit TBW0363

Note:

• Make sure the air fuel screw is 1.5 turns out from bottom before you start tuning. We also check to make sure the needle clip is in the center position to start.
• Proper manifold and throttle cable will be needed for each individual model.
