KLX110 2017+ 22mm Nibbi Carb & Stage 2 Cam Kit

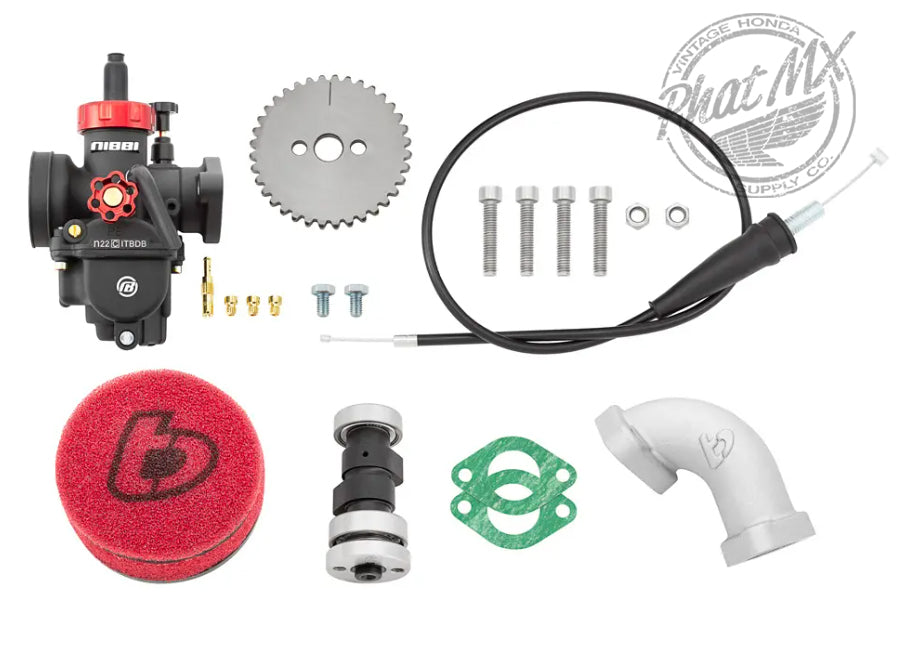

Carb & cam kit for 2017+ Kawasaki KLX110s includes a Nibbi 22mm carburetor and stage 2 cam. Wake up your KLX110 with this bolt on 22mm carb & cam kit. The nibbi carbs are easy to tune and add a good boost in power over the small factory carb. Paired with our stage 2 cam for even more power!

Starting with the 22mm Nibbi you get premium features like an anodized body, lightweight hardware, polished airway, and a large splash guard for smooth performance. Making it one of the best performance-to-price options on the market. Next is the custom TB manifold with extra height suited for the taller carburetor so it does not hit the tappet cover. Port matched for optimal air flow, TB logo, and includes hardware/gaskets. Compatible extended throttle cable. A high quality, dual layer, 1 piece foam air filter. Now paired with our stage 2 performance cam to open up the valves more for more power! (this kit does not reuse the stock air box)

Key Features

• Nibbi PE22FL – a premium upgrade featuring a hard anodized body, a polished round slide and airway for smoother throttle response, and a built-in splash guard for stable performance on rough terrain. Lightweight, reliable, and performance-focused.
• Manifold kit – Custom made for Flange mount Nibbi Carbs on KLX110s for an optimal fit and function.
• Extended throttle cable for use with OEM throttle
• High quality, dual layer, 1 Piece foam air filter
• Stage 2 performance cam (With matching Cam Sprocket) New cam bearings installed
• Kit does not reuse stock air box

Tuning required

• Jets Installed 98 main 32 Pilot
• Jets Included Main Jet #92 #95 #100 Pilot Jet #30
• Main Jet kit – TBW0327 TBW1763 TBW1764
• Pilot jet kit TBW0363 TBW1762
• Make sure the air fuel screw is 1.5 turns out from bottom before you start tuning.

Please visit TBparts.com tech section for valve installation notes/settings
