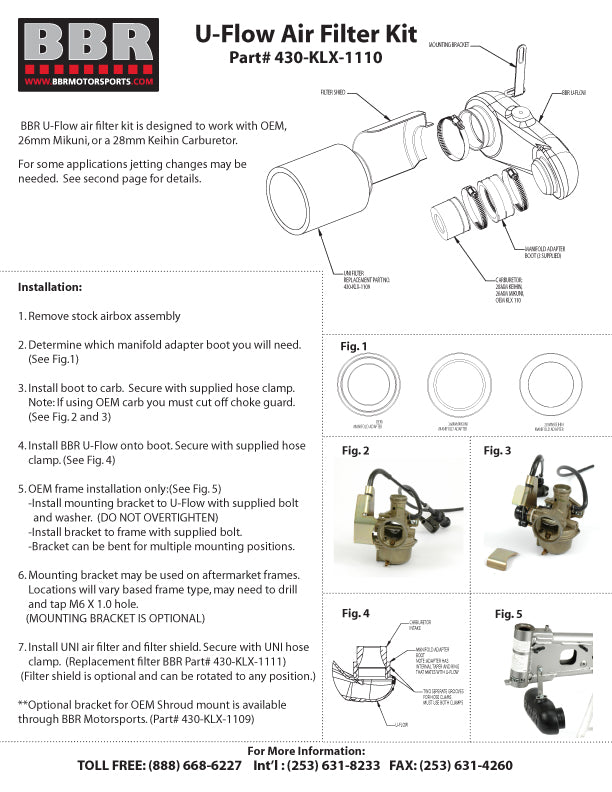

KLX110 U-Flow Filter Kit

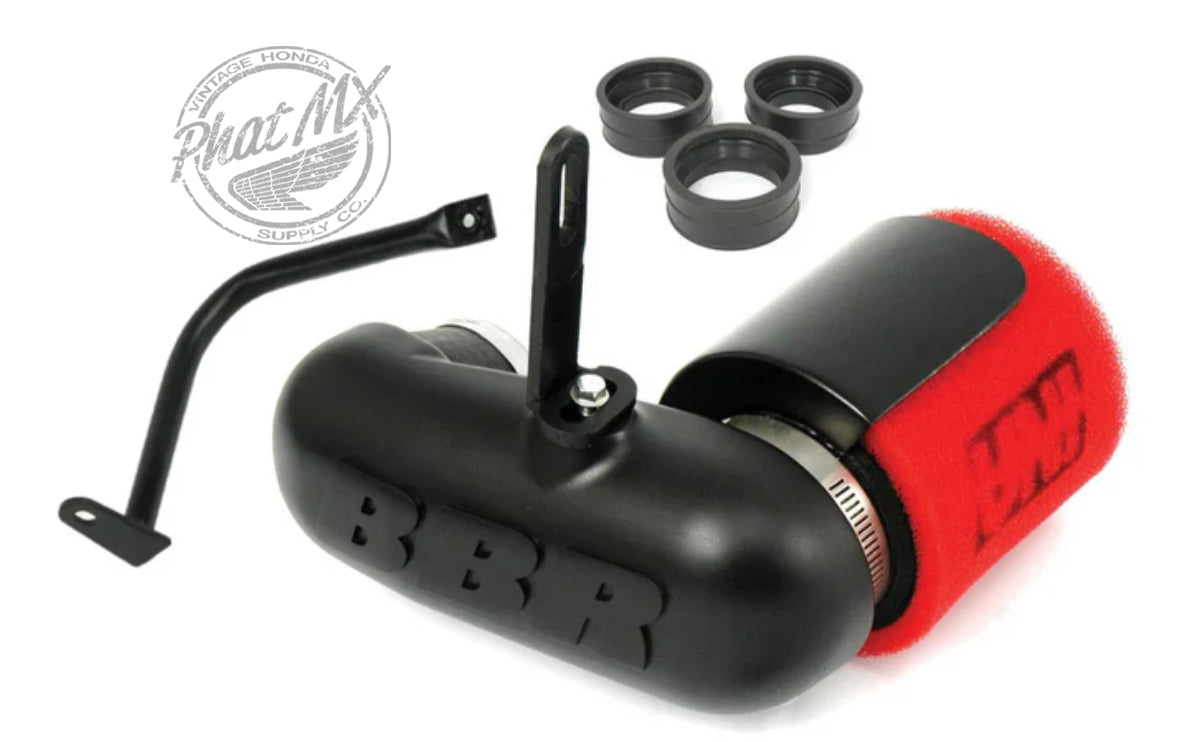

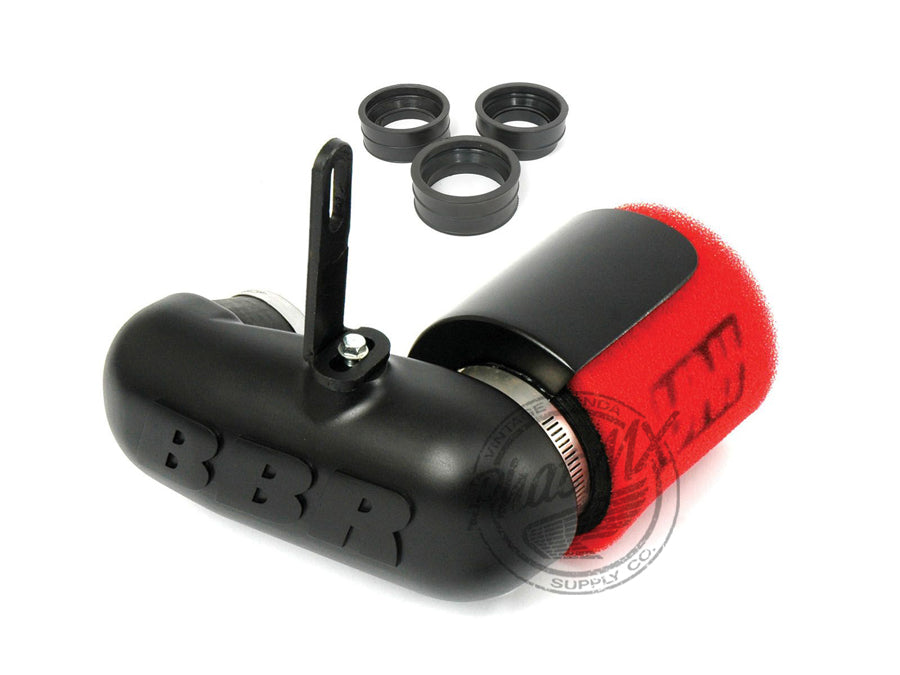

BBR's exclusive U-Flow Air Filter System turns the filter around so it faces backwards, keeping it shielded from dirt and mud. It comes with a high-volume oversized Uni filter maximizing air flow. This innovative upgrade allows the bike to be jetted for optimum performance. The U-Flow delivers a high volume of air to your carburetor resulting in sharper throttle response. Complete kit includes adapters to fit stock KLX/DRZ110 carbs along with the Mikuni VM26 and Keihin PWK/PE28.

• Sharper throttle response
• Shields filter from dirt and debris
• Maximizes air-flow with high-volume over-sized Uni Filter air filter
• Allows bike to be jetted for optimum performance

NOTE: For stock frame applications the optional Air Box Removal Bracket (item # 430-KLX-1109 see Optional Parts below) should be used for added support of the LH shroud.

**Note** Jetting Specs for UFlow Air Filter **Note**
*Colder weather requires larger jets. Warmer weather and higher octane require smaller jets.*
92 octane @ sea level (60 degrees)
Stock KLX 110 = OEM Stock Carb and OEM Pipe (95-100 main jet)
Stock KLX 110 = OEM Stock Carb and BBR Pipe (100 -105 main jet)
KLX 110 Stock Carb 143cc Kit = (100-105 main jet)
KLX 110 Stock Carb 143cc Kit and BBR Pipe = (105 and up main jet)
KLX 110 143cc Kit, 26mm Mikuni Carb and BBR Pipe = (180 main jet, 22.5 Pilot)
KLX 110 160cc Kit, 26mm Mikuni Carb and BBR Pipe = (190 main jet, 22.5 Pilot)
KLX 110 160cc+ Kit, 28mm Kiehn Carb and BBR Pipe = (120 main jet, 42 Pilot)
