KLX140 26mm Carb and Throttle Kit

TB Carb & Throttle Kit, PE26 – KLX140

TBparts PE26 carb kit for Kawasaki KLX140. CNC billet aluminum intake manifold, hard anodized black with the TBparts logo. Port matched for the stock head and made for use with the PE26 carb. The bike will pick up power everywhere! This manifold kit does not reuse the stock airbox/tube. This is one of the best options for a 170cc+ KLX140! Included with a new matching throttle and grip set!

Nibbi PE26 Carburetor. Nibbi helped perfect the simple design of the PE26! Starting with looks, they come hard anodized black. This helps with corrosion resistance, wear resistance, insulation, heat resistance and hardness/strength of the carburetor. The air passage starts out anodized then transitions into a smooth polished finished for optimal power and smooth consistent power. The lightweight hardware is also anodized. Another huge benefit is the splash guard. It keeps the engine operating smooth under bumpy riding. Making them an AMAZING value overall!

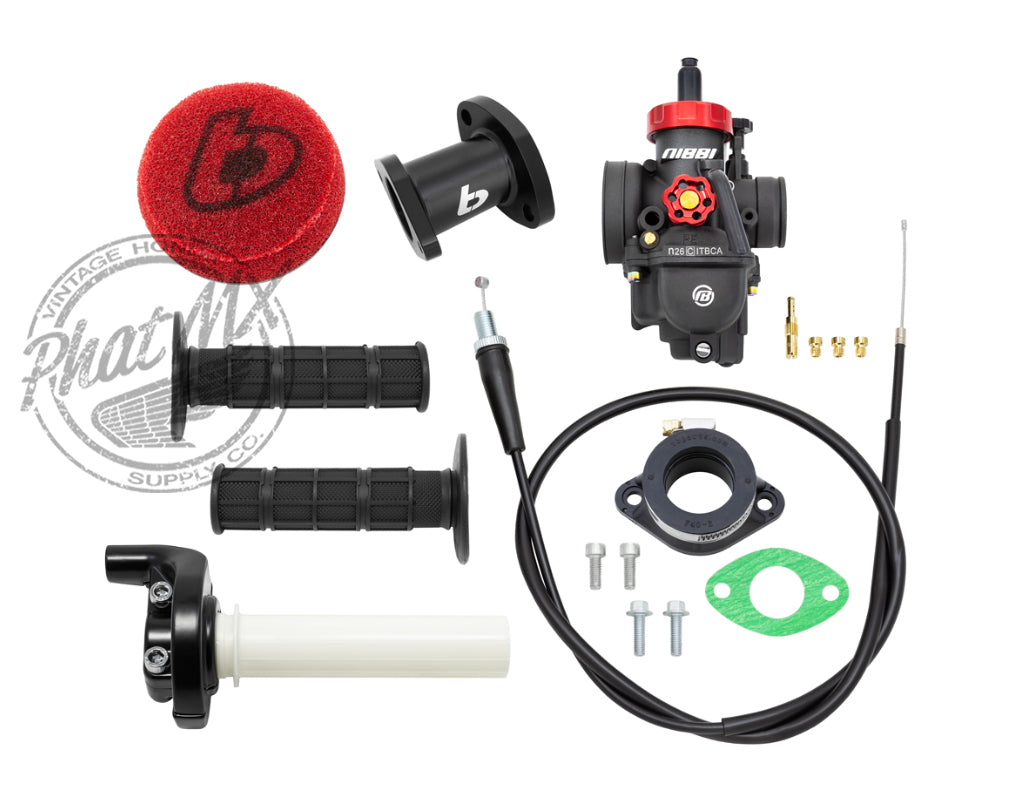

Kit Features –

• CNC Billet intake manifold, Hard anodized black with TBparts logo, hardware & gaskets
• Not for use with stock air box – High Flow Race use!
• Extended Throttle Cable for use with the stock bars and throttle or tall bars.
• Includes Main Jet #112 #108 #105 Pilot Jet #35
• Jets installed #110/#40
• Dual Layer Foam Air filter

Installation Notes-

• New Choke lever position is much harder to reach compared to OEM, New Fuel Line not included
• Base tune Pilot jet #38 , Main Jet #120 Make sure the air fuel screw is 1.5 turns out from bottom before you start tuning.
