Universal 12V Relay

Type: electrical
Vendor: Phatmx

Description:

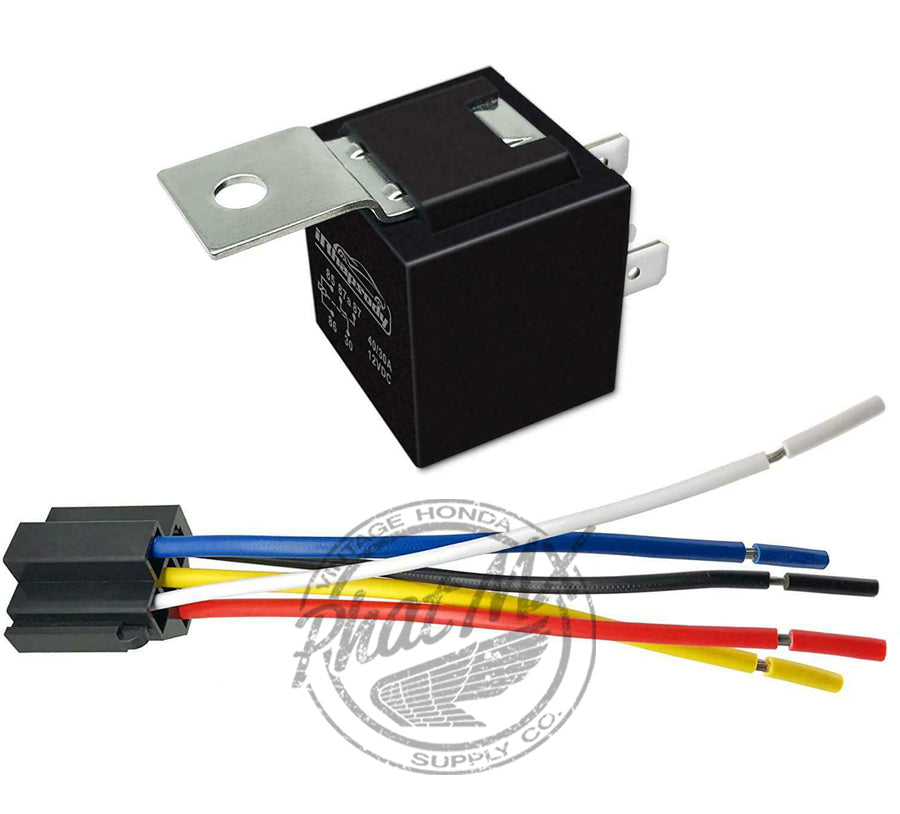

5-PIN SPDT Bosch Style Automotive Relay - used when adding lights to one of the aftermarket motors.

Includes one relay and one harness.



  • 12 AWG tinned copper wires for Pin 30, Pin 87, Pin 87a
  • 16 AWG tinned copper wires for Pin 85, Pin 86
  • 12 volt dc relay (max 14V). 80 AMP / 60 AMP High switching capability

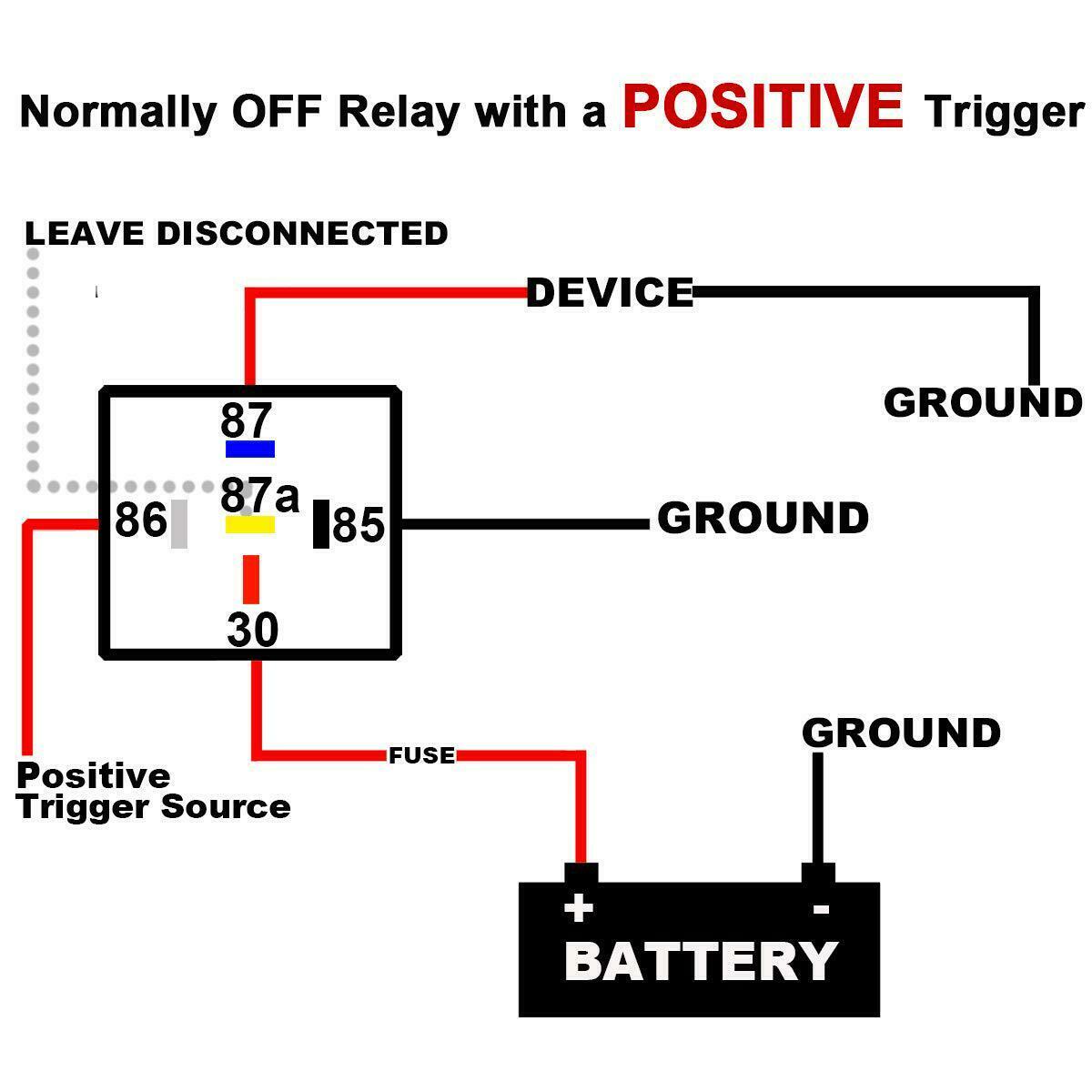

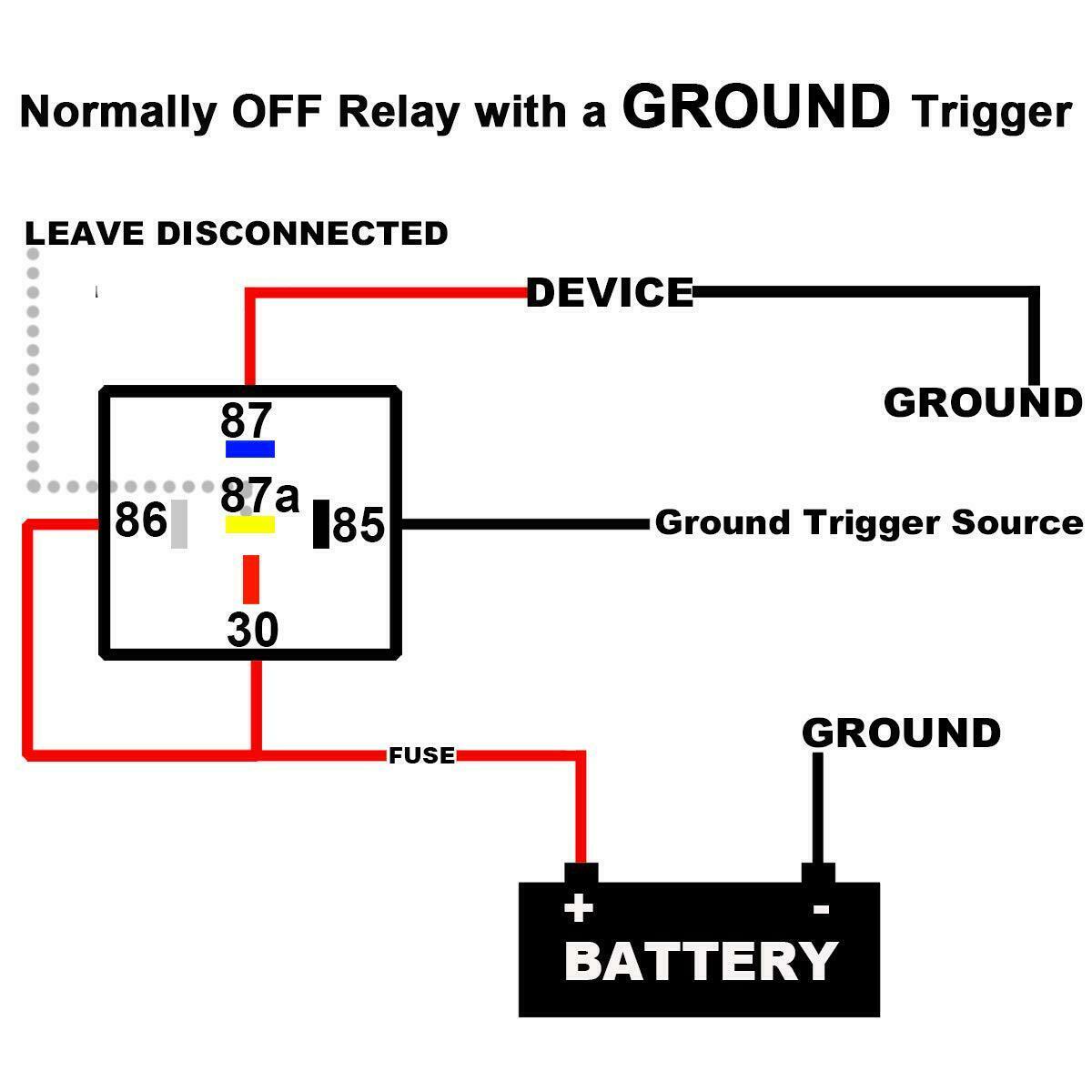

  • Pin Specifications: 30-VDC (Red), 85-Ground (Black), 86-Trigger (White), 87-Output /O (Blue), 87a-Output N/C (Yellow)
  • Nominal Coil Voltage: 12VDC; Must Operate Voltage: 6~8VDC; Must Release Voltage: 0.6~3.6VDC; Maximum Applied Voltage: 15.6VDC; Coil Power: 1.8W; Coil Resistance: 80Ω

    •
